Detail produk:
|
| Nomor model: | SE14 | Menahan Torsi: | 54200 Nm |
|---|---|---|---|
| Torsi Miring: | 68000 Nm | Torsi keluaran: | 6550 Nm |
| Beban Aksial Statis: | 680 kN | Beban Radikal Statis: | 230 Kn |
| Bahan baku: | 50Mn, 42CrMo | Berat: | 63KG |
| Menyoroti: | hydraulic slew motor,solar tracker drive |
||

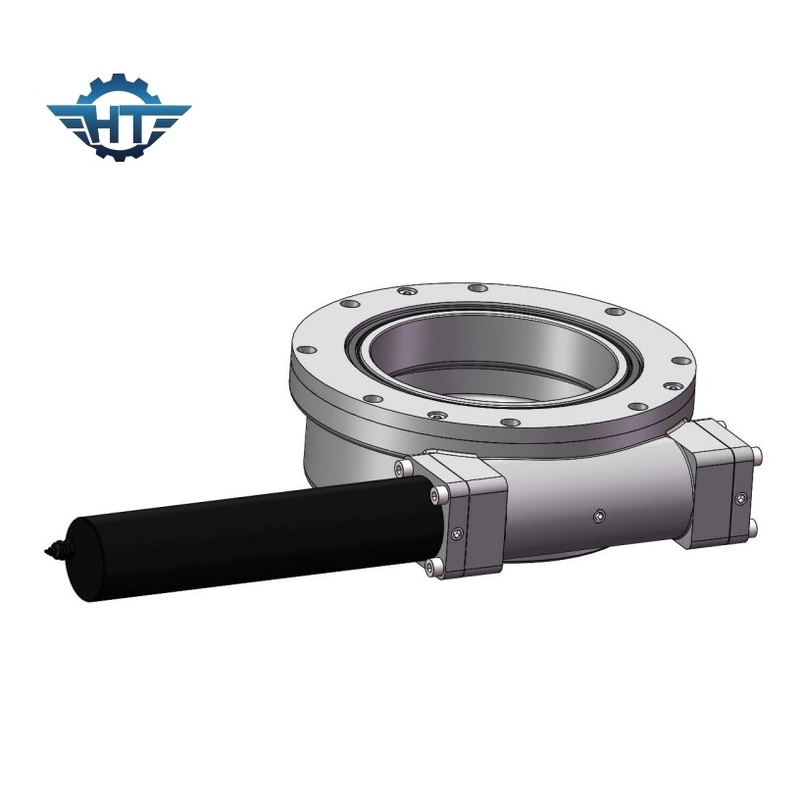

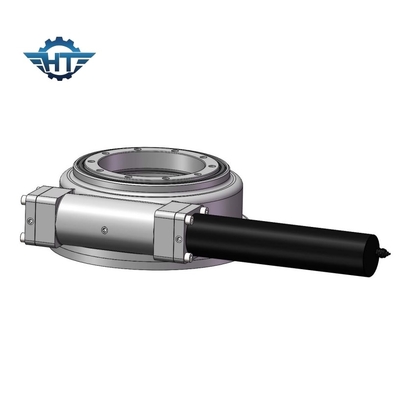

SE14A Solar Slew Drive Gearbox with Motor for Solar Tracking System
SE14A Slew Drive Description
Model Code:
1 2 3 4 5 6 7 8 9 10 11
| KE - 3 - A - 31 - M - HA - 6B R C - 2 - REV.A |
SE: SE-Horizontal slew drive, VE-Vertical slew drive
SDE-Dual axis slew drive
2- Product size, eg.3”, 5”, 7”, 9”, 12”, 14”, 17”, 21”, 25”, 3” slew drive, reduction ratio: 31., 5” slew drive, reduction ratio: 37., 7” slew drive, reduction ratio: 57, 9” slew drive, reduction ratio: 61, 12” slew drive, reduction ratio: 78, 14” slew drive, reduction ratio: 85, 17” slew drive, reduction ratio: 102, 21” slew drive, reduction ratio: 125, 25” slew drive, reduction ratio: 150.
3- A: Engineering Level, A, B, C, etc…
4- XXX: The reduction ratio.
5- M: M-metric mounting threads, None-Screw hole by British measurement. M
6- HX: HA- Quenching, HC-No quenching, HD-Austempered Ductile Iron, HQ- QPQ, HN-Nitriding
7- 25M : B-6B spline input, 12M-φ12 hole input, 25M-φ25 hole input, 160-160CC hydraulic motor input, 24-24V gear motor input, 220-220V gear motor input, 380-380V gear motor input
8-R: R-right side, motor position. L- Left side, motor position.
9-C: C-Capped end. E-Supply Encoder. A - Away, hydraulic port position & direction. I - In, hydraulic port position & direction. U- Up, hydraulic port position & direction. D - Down, hydraulic port position & direction.
10- 2: None-Worm number/ Blank-Single, 2-Dual
11-REV.A: Version number A B C etc...
Notice: We will add the customer code when customers has special requirement.
Performace Parameters of SE Model Slew Drive
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Transport, Handling & Storage
Transport only in horizontal position, impacts should be avoided.
Wear work gloves and be careful when handling the slew drive.
Use the holes of the rings in the slew drives to fix bolts for safe hoisting, handling and placement.
Store only in a horizontal position and in closed rooms, keep it away from getting wet, the surface corrosion protection of exposed mating surfaces lasts approximately 1 month in closed packaging. Longer period storage requires special protective measures.
Transporting unpacked slew rings
Use suitable lifting gear/ never transport product vertically
Unpacked slew drives can be transported with lifting gear under the following conditions:
