| Brand Name: | HangTuo |
| Model Number: | VE9" |
| MOQ: | 1 buah |
| harga: | USD 280~504 / pc |
| Delivery Time: | 15~45 Hari |
| Payment Terms: | L/C, T/T, Western Union |

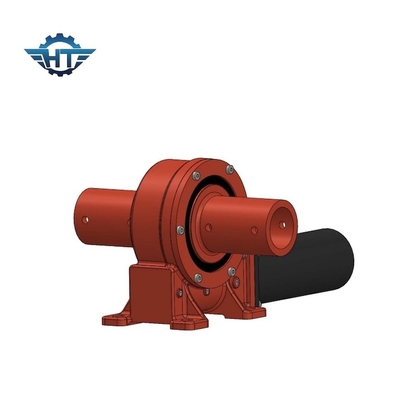

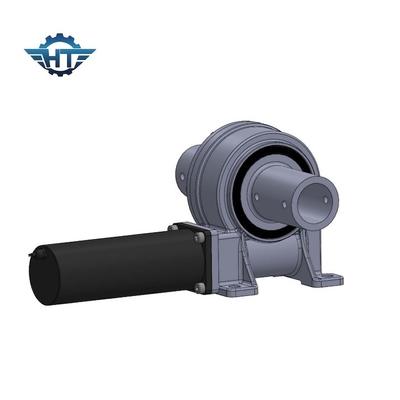

Skeleton Oil Seal CE Certified Worm Gear Slew Drive Untuk PV Solar Trackers
Deskripsi Worm Gear Slew Drive
Drive slew gigi cacing presisi tinggi untuk truk berat
Kami adalah perusahaan bersertifikat ISO 9001: 2008.
Parameter Kinerja Model VE
| Parameter Kinerja Model VE | ||||||||||||
| Model | Nilai Torsi Keluaran (Nm) | Memegang Torsi (kN.m) | Torsi Miring (kN.m) | Beban Aksial (kN) | Beban Radial (kN) | Perbandingan | Efisiensi |
presisi (Derajat) |
AKU P | Tep Kerja (℃) | Mengunci sendiri | Berat (kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31: 1 | 40% | 0.15 | 66 | -40～+80 | Ya | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | 0.15 | 66 | -40～+80 | Ya | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | 0.15 | 66 | -40～+80 | Ya | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | 0.15 | 66 | -40～+80 | Ya | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61: 1 | 40% | 0.15 | 66 | -40～+80 | Ya | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78: 1 | 40% | 0.15 | 66 | -40～+80 | Ya | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85: 1 | 40% | 0.15 | 66 | -40～+80 | Ya | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102: 1 | 40% | 0.15 | 66 | -40～+80 | Ya | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125: 1 | 40% | 0.15 | 66 | -40～+80 | Ya | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150: 1 | 40% | 0.15 | 66 | -40～+80 | Ya |
251 kg |
